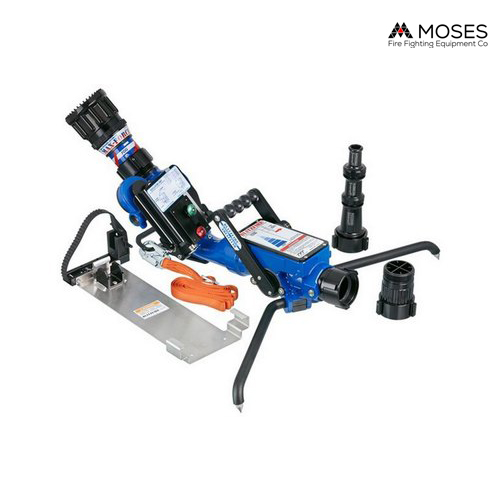

Blitzfire Oscillating Monitor Package
Offering you a complete choice of products which include Blitzfire Oscillating Monitor Package.
Blitzfire Oscillating Monitor Package
Surface Finish | Powder Coated Dark Blue |
Monitor Configuration | Portable (Oscillating) |
Flow Rate – Monitors | 0-500 gpm (0-2000 l/min) |
Operation Energy Source | Manual |
Monitor Inlet | 2.5 Inch Rocker Lug |
Monitor Outlet | 2.5 Inch (65mm) |
Horizontal Movement (degrees) | 20 Left and 20 Right of Center |
Vertical Movement (degrees) | 10 Above to 50 Above Horizontal |
Valve Design | Slide Valve (Aluminum) |
FeaturesBlitzfire Oscillating Monitor Package — Flow range up to 500 gpm (2000 l/min). The monitor features low friction inlet and outlet pivots. Elevation is manually adjustable between 10° and 46° above horizontal. The water driven turbine makes the nozzle automatically sweep 10°, 15°, or 20° either side of center. The oscillating mechanism can be disengaged and horizontal rotation moved manually. The safety shut-off valve will shut off flow if monitor slides or lifts. It has six detent flow positions with a patented turbulence-free slide valve for operator flow control. When the legs are folded, the carbide tips point up for carrying safety. The heavy-duty carbide tipped legs are easily folded out to a wide deployed stance. Packages are available with choices of combination nozzle and/or stacked tips and stream straightener, with or without storage bracket. Stowed in storage bracket overall size (without nozzle) is 34.8″L x 10.5″W x 9.6″H (88.4 x 26.7 x 24.4 cm). Standard inlet is 2.5″ NH (64mm) swivel rocker lug coupling. Standard outlet is 2.5″ NH (64mm) rigid male threads
